L98-100-002
Tiger
8501520090
Availability: | |
---|---|
Quantity: | |
Model: L98-100-002
The 60kg Power Station Direct Drive Motor is a high-performance motion control component designed for applications that require precision, efficiency, and long-term stability. Built using direct drive technology, this motor eliminates the need for belts, gearboxes, or screws. Instead, it couples the load directly to the rotor, offering faster response time and smoother torque delivery.
This technology reduces wear and tear on moving parts, lowers maintenance costs, and improves system longevity. It is ideal for modern automation systems, distributed energy applications, and environments requiring high torque consistency.
By integrating smart design principles with robust materials, this product supports next-generation industrial upgrades across multiple sectors.

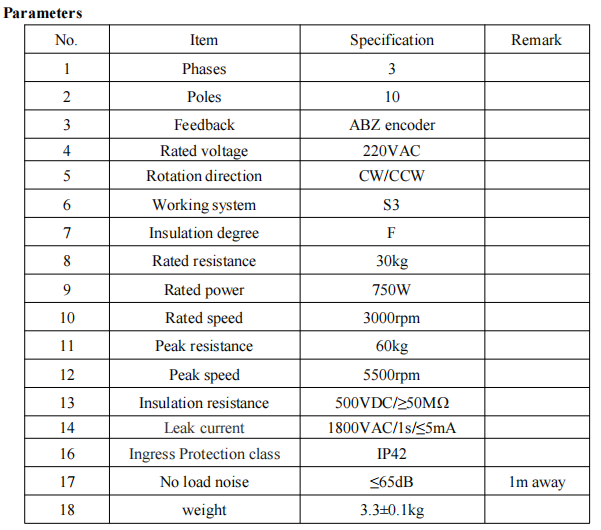

Phases: 3
Poles: 10
Rated Power: 750W
Rated Voltage: 220V AC
Rated Speed: 3000rpm
Peak Speed: 5500rpm
Rated Resistance: 30kg
Peak Resistance: 60kg
Rotation Direction: CW/CCW
Feedback Type: ABZ encoder
Working System: S3 (intermittent duty)
Weight: 3.3 ± 0.1kg
These specifications are carefully engineered to meet the motion control demands of high-cycle equipment. The combination of rated speed and resistance enables the motor to deliver torque output precisely and reliably across various load conditions.
Insulation Degree: Class F (for higher thermal tolerance)
Insulation Resistance: ≥50MΩ under 500VDC
Leak Current Tolerance: ≤5mA under 1800V AC/1s
Ingress Protection: IP42 (resistant to solid objects and water drops)
No Load Noise Level: ≤65dB at 1 meter
The S3 duty rating ensures that the motor can operate effectively in start-stop environments. Class F insulation supports long-term operation in high-temperature surroundings. The IP42 protection class makes this motor suitable for semi-enclosed or clean industrial environments.
In applications requiring both direct drive torque motor efficiency and low-noise servo operation, this unit offers a highly reliable solution.
This motor is an ideal choice for engineers and system integrators working in:
Distributed energy modules and power station motor systems
Medium-load precision manufacturing equipment
Servo-driven motion assemblies in automation lines
Compact torque control platforms
With its 10-pole design and ABZ encoder feedback, the motor ensures optimal performance in systems where speed regulation and position detection are crucial. The encoder enables real-time feedback and synchronization with digital controllers, a necessity in today's motion platforms.
The low noise profile of ≤65dB makes it suitable for applications near operator workstations or in environments where acoustic output must be controlled.
No need for belts or gears → lower maintenance
Fast dynamic response → improved motion control
Small form factor → easier integration into tight spaces
High torque stability → fewer performance interruptions
Encoder-based feedback → real-time positioning and diagnostics
The high torque direct drive motor design ensures power delivery with minimal energy loss. It fits well into modern equipment frameworks emphasizing energy conservation, operational uptime, and smart control integration.
This motor also contributes to enhanced reliability in modular energy equipment, such as compact generators, hybrid systems, and clean power conversion units. Its compact size and robust design allow flexible installation in both horizontal and vertical configurations.
Looking for a reliable motion control solution for your power systems or automation line?
Contact tigers today to get pricing, datasheets, or integration support.
Our team is here to help you choose the best fit for your system—fast, responsive, and engineered for the future.
