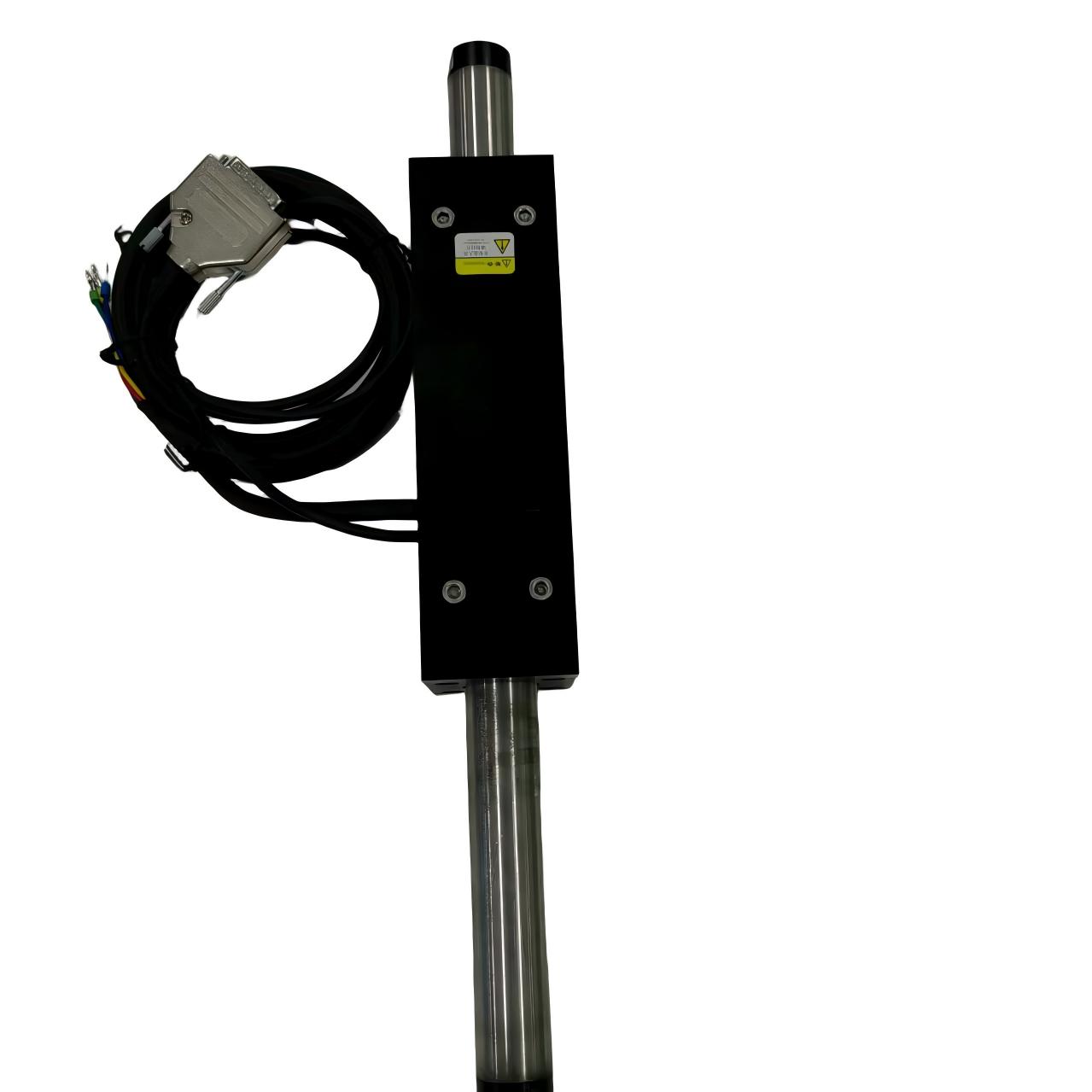

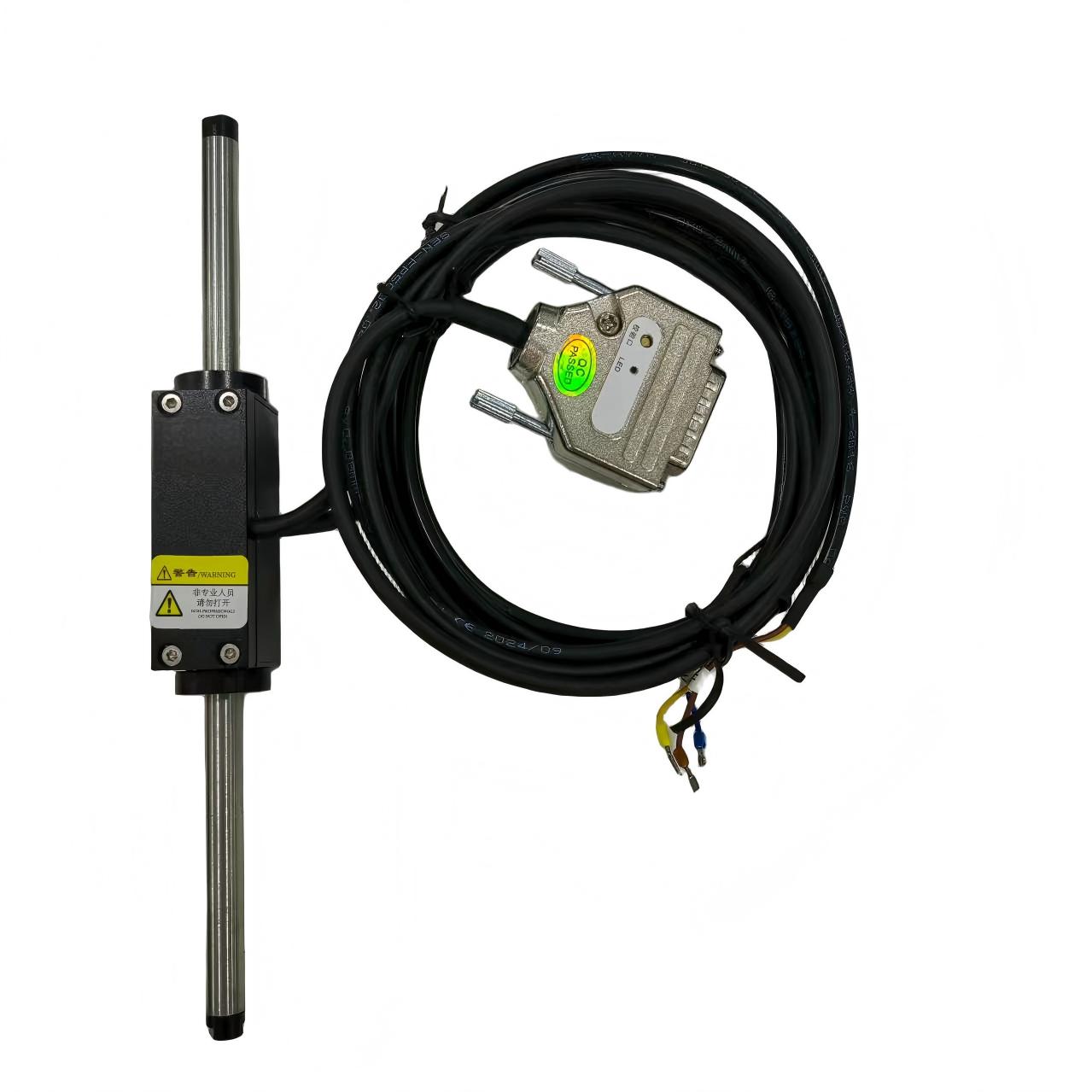

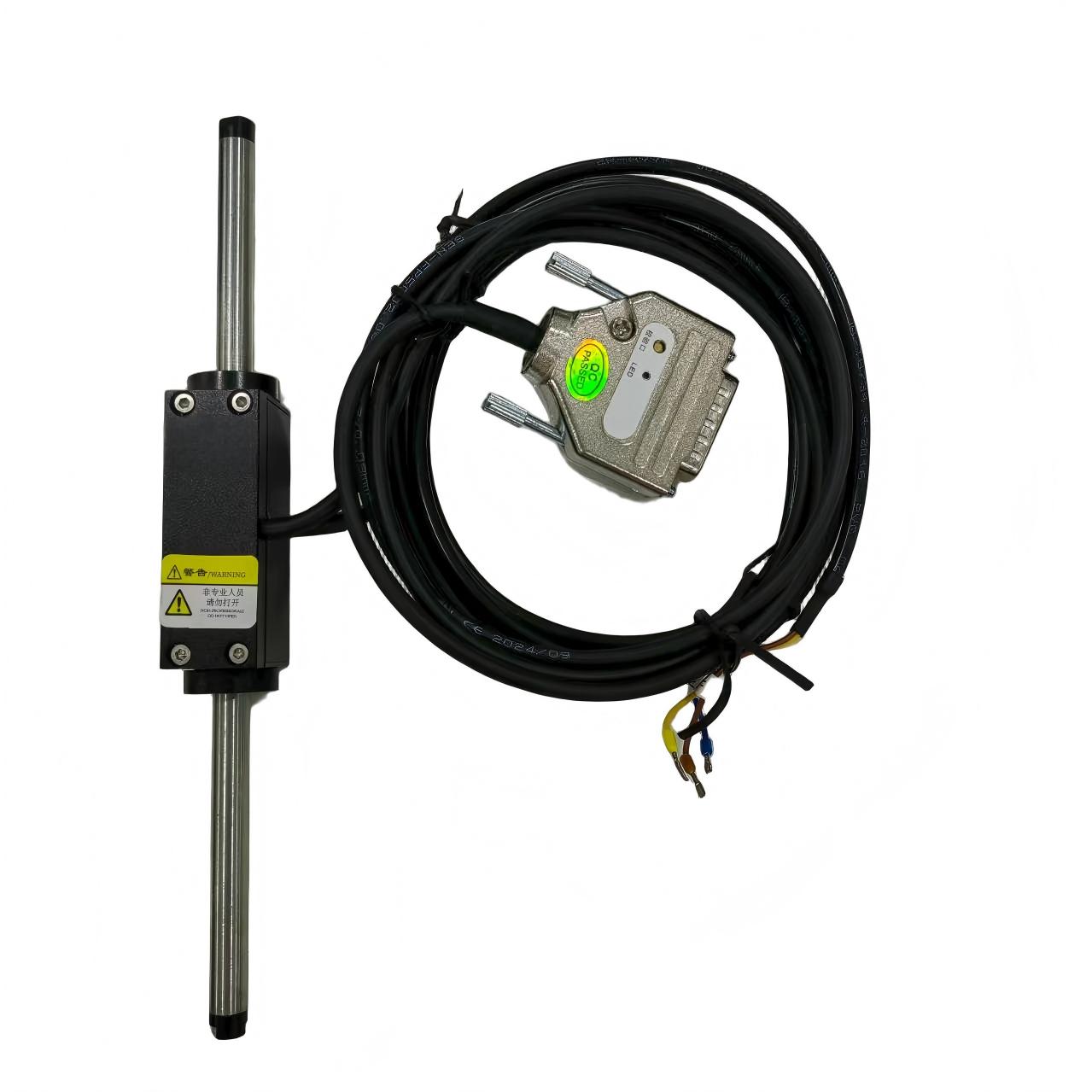

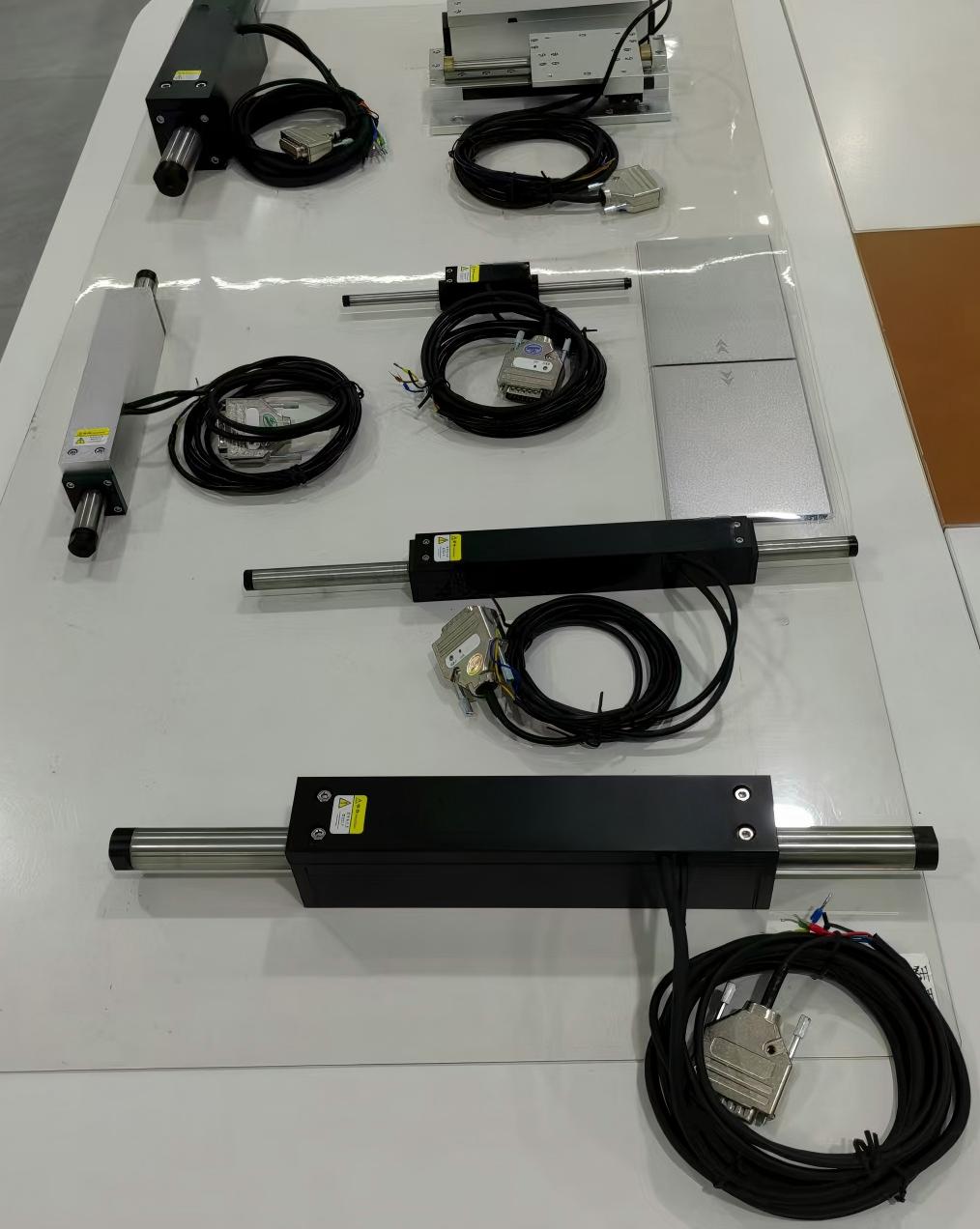

LM2040I
Tiger
| Availability: | |
|---|---|
| Quantity: | |
Basic Performance Parameter
Parameter | symbol | Unit | LM2040DI | LM2040TI | LM2040QI |
Electrical performance parameters | |||||
Continuous thrust | Fc | N | 30 | 55 | 72 |
peak thrust | Fp | N | 120 | 220 | 288 |
Continuous current | Ic | Arms | 1.6 | 3 | 3 |
peak current | Ip | Arms | 6.4 | 12 | 12 |
force constant | Kf | N/Arm s | 18.75 | 18.33 | 25.777 |
Back EMF Constant | Ke | Vpeak/ (m/s) | 16.25 | 17.2 | 20.8 |
Line resistance (25℃) | R25 | Ω | 11.48 | 6.51 | 8.7 |
Line inductance | L | mH | 10.633 | 6.811 | 9 |
Pole pair pitch | 2τ | mm | 72 | ||
Coil temperature resistance | Tmax | ℃ | 120 | ||
Mechanical performance parameters | |||||
Primary quality | Mf | Kg | 0.8 | 1 | 1.2 |
Magnetic axis unit mass | Ms | Kg/m | 2.25 | ||
Primary length | Lf | mm | 144 | 180 | 216 |
Primary external dimensions | A×B | mm | 40×50 | ||
Mover Aperture | D1 | mm | 20 | ||
Installation spacing | P1 | mm | 101 | 137 | 173 |
Installation spacing | P2 | mm | 20 | ||
Standard Stroke | S=S1+S2+27 | mm | <=500 (间距 36) | ||
Total Length of Magnetic Shaft | Ls | mm | Ls=S+Lf+63 | ||
1. *The line resistance (at 25℃) refers to the resistance value with a 1-meter power cable included. 2.When the sum of S1 and S2 is less than a multiple of 36, supplement it to the nearest multiple of 36. | |||||
