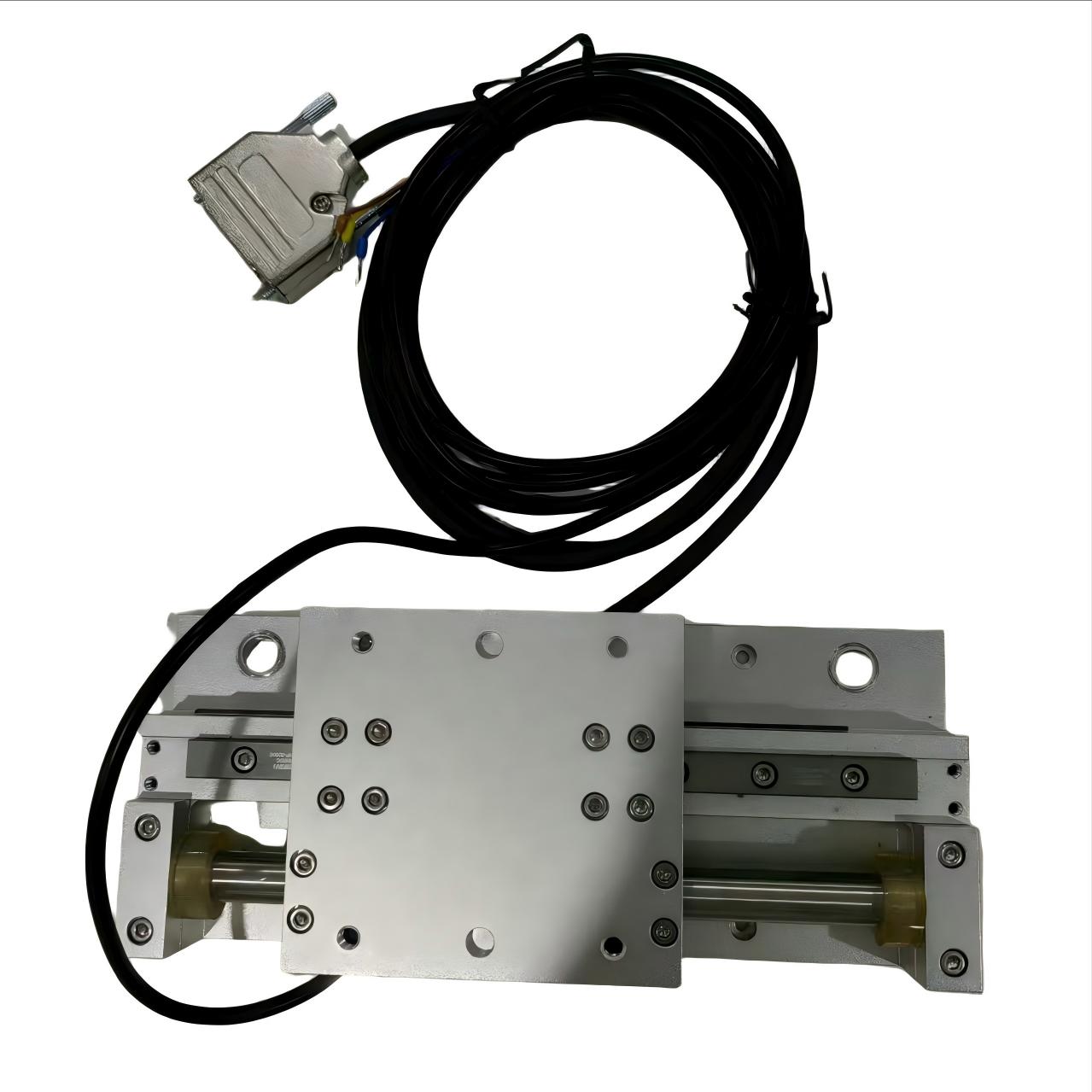

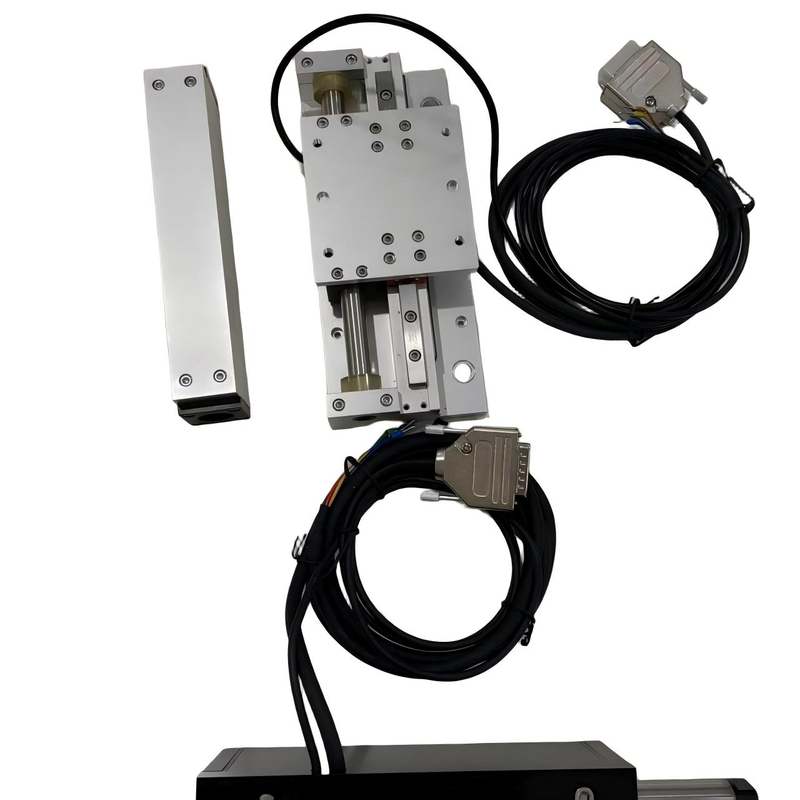

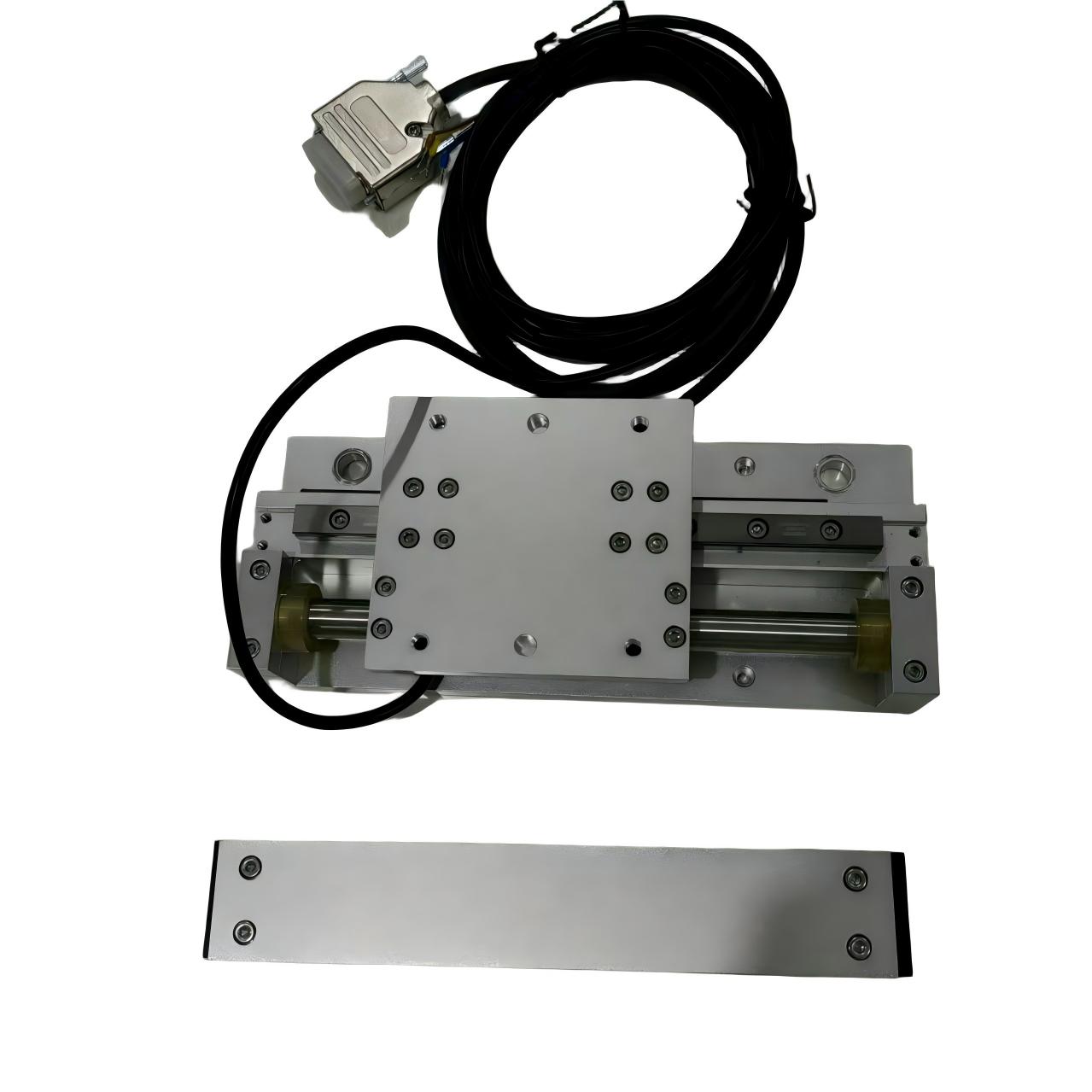

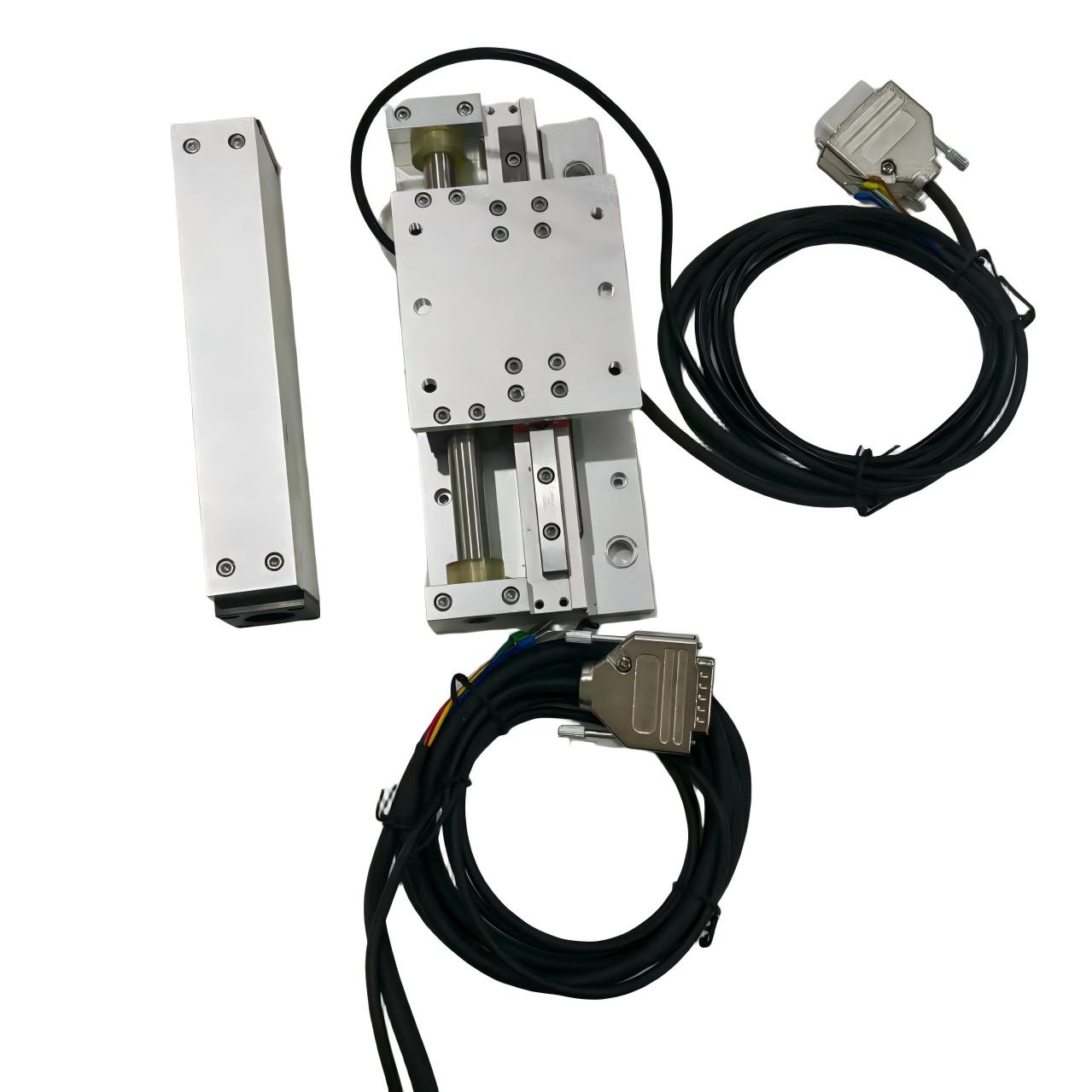

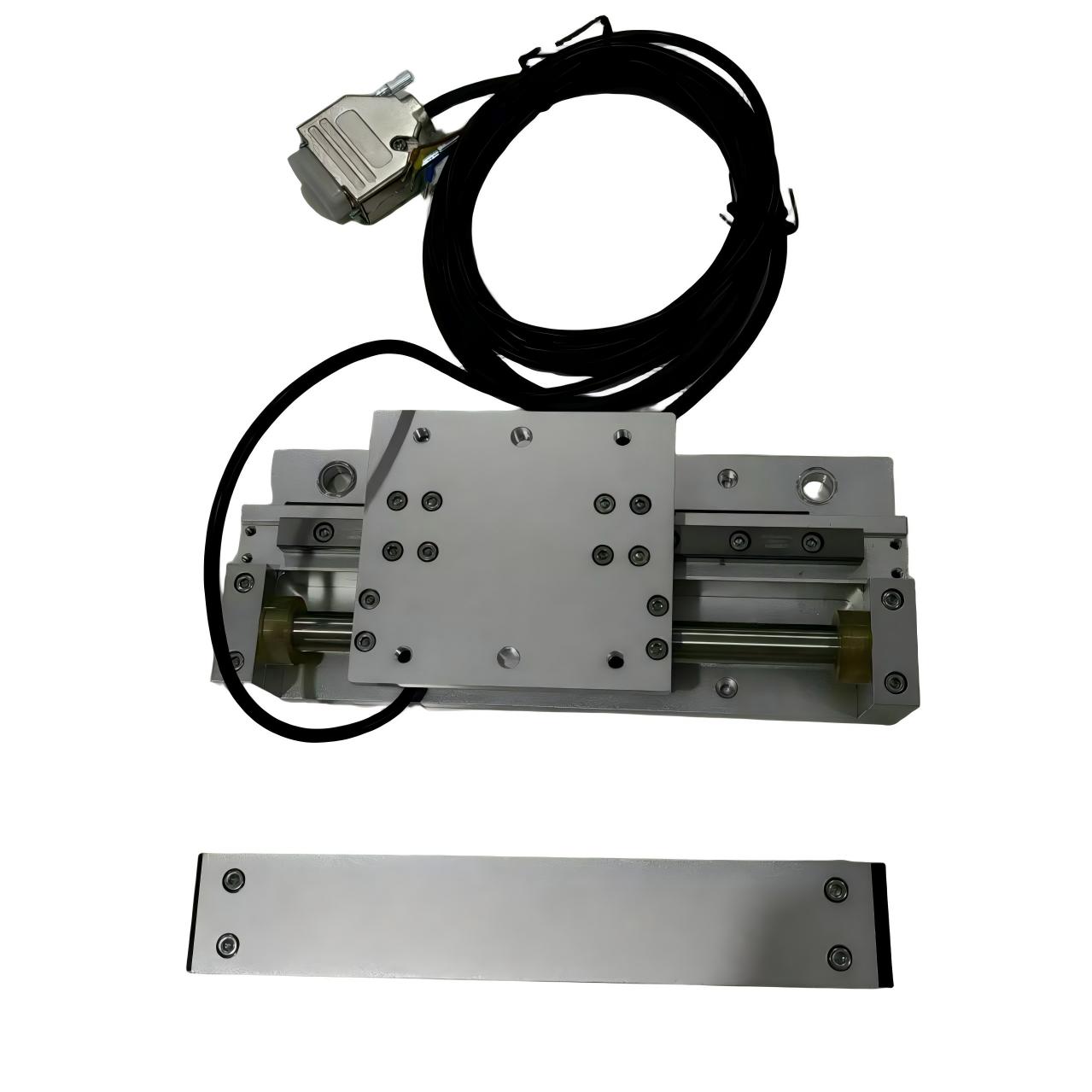

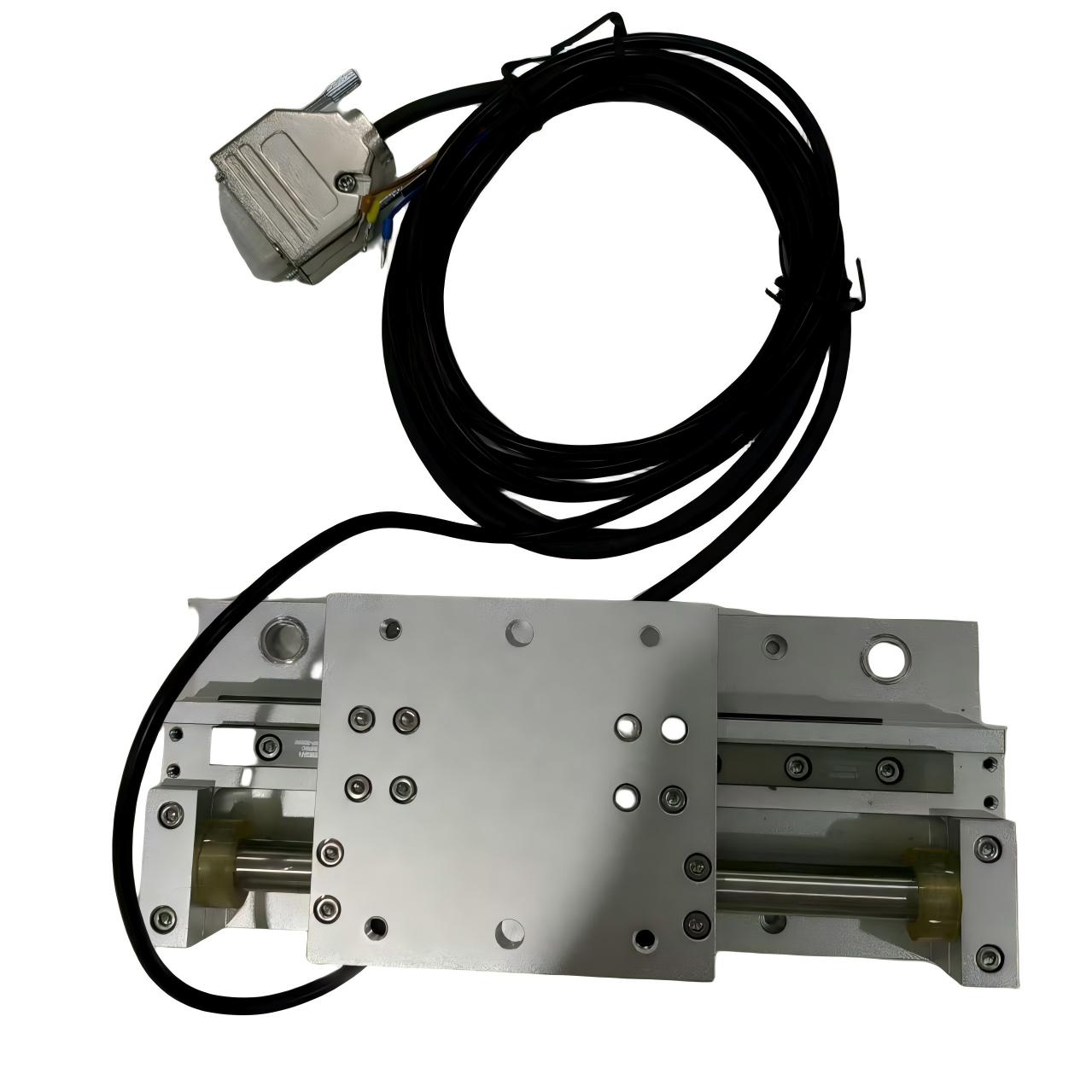

Basic Performance Parameters of LSM85-LM12 Series
Parameter | unit | LM12D | LM12T | LM12Q |
Continuous thrust | N | 7.8 | 11.7 | 15.6 |
peak thrust | N | 31.2 | 46.8 | 62.4 |
Continuous current | Arms | 1 | 1 | 1 |
peak current | Arms | 4 | 4 | 4 |
force constant | N/Arms | 7.8 | 11.7 | 15.6 |
Back EMF Constant | Vpeak/(m/s) | 6.25 | 9.4 | 12.5 |
Line resistance (25℃) | Ω | 6.67 | 10 | 13.33 |
Line inductance | mH | 2.125 | 3.25 | 4.25 |
Pole pair pitch | mm | 48 | 48 | 48 |
Coil temperature resistance | ℃ | 120 | 120 | 120 |
Motive mass | kg | 0.248 | 0.34 | 0.495 |
Length of mover Lf | mm | 64 | 88 | 112 |
Distance between mounting holes D | mm | 34 | 58 | 82 |
Repetitive positioning accuracy | grating | mm | 士 0.0015 | 士 0.0015 | 士 0.0015 |
magnetic grating | 士 0.0025 | 士 0.0025 | 士 0.0025 |
Maximum transportable weight※1 | Kg | 0.4 | 0.7 | 1 |
Maximum operating speed※2 | m/s | 1.7 | 1.7 | 1.7 |
stroke | Single Actuator | mm | ≦504 | ≦504 | ≦504 |
Double Actuator | ≦432 | ≦408 | ≦384 |
※1 The maximum transportable weight is achieved at a stroke of 120mm and a maximum triangular wave operating speed of 1m/s; weights vary with different speeds.
※2 The maximum operating speed is achieved under 120mm stroke, 0.5N frictional resistance, and no load.
Professional Summary of LSM85-LM12 Module
The LSM85-LM12 Linear Servo Motor Module series (including LM12D, LM12T, and LM12Q models) is engineered for high-precision industrial automation. With a repetitive positioning accuracy of up to ±0.0015mm and a maximum operating speed of 1.7m/s, these modules offer exceptional reliability for delicate transport and rapid positioning tasks. The robust design and coil temperature resistance up to 120℃ ensure long-term stability in demanding environments.
Direct Factory Wholesale: Linear Servo Motor Module Solutions
As a leading Linear Servo Motor Module manufacturer, we specialize in providing high-performance LSM85-LM12 modules for sale to global industrial clients. Our factory ensures that every wholesale linear motor supplier order meets the highest quality standards. Whether you are looking for a reliable supplier for precision actuators or a factory-direct solution for bulk orders, our LM12 series provides the competitive wholesale pricing and technical superiority your business requires.
Request a Quote for LSM85-LM12 Today
Looking for a trusted Linear Servo Motor Module supplier? We provide comprehensive OEM/ODM services and bulk discounts. Contact us now to receive our latest product catalog and wholesale pricing for the LSM85-LM12 series.
