L98-150-001
Tiger
8501520090
Availability: | |
---|---|
Quantity: | |
Model: L98-150-001
The 90kg Power Station Servo Gear Motor is a high-performance, space-saving solution designed to replace traditional counterweights with intelligent servo-driven motion. With its compact 5.5kg body and 90kg peak resistance, this motor delivers precision tension control in industrial simulators, smart fitness systems, and power training platforms.
Powered by 900W, the motor supports adjustable tension from 10–80Kgf, making it ideal for applications that require programmable load variability. Its built-in ABZ encoder ensures real-time feedback, while the integrated gear system boosts torque efficiency.
This servo gear motor is suitable for environments requiring clean design, intelligent response, and long-term durability—particularly in systems where conventional weight stacks are no longer viable.
Adjustable tension force (10–80Kgf) for dynamic load response
ABZ encoder provides precise speed and position control

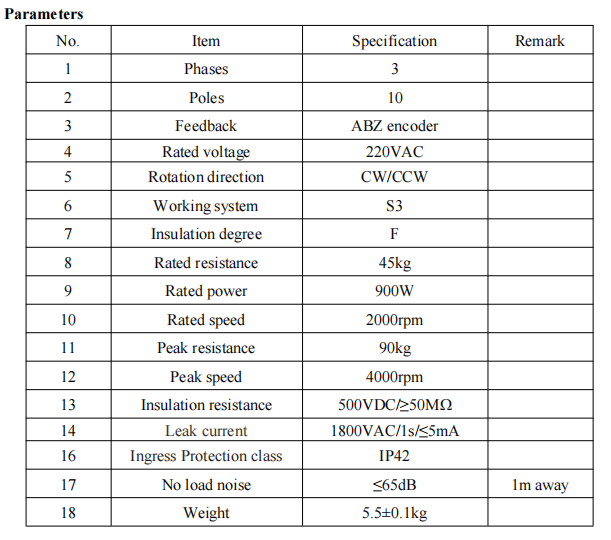

Rated Power: 900W | Rated Speed: 2000rpm | Peak Speed: 4000rpm
Rated Resistance: 45kg | Peak Resistance: 90kg
3-phase, 220V AC | S3 intermittent duty | CW/CCW rotation
Compact and lightweight (5.5±0.1kg), easy to install and transport
Low noise operation ≤65dB at 1 meter
IP42-rated housing for protection in light-duty environments
Class F insulation & ≥50MΩ insulation resistance for electrical safety
This motor offers seamless performance where precision load management is required under variable conditions.
Programmable rowing machine resistance units
Smart indoor cycling platforms with real-time tension control
Power station training rigs and simulators
Compact robotic lifting or uncoiling systems
Industrial load simulation and fatigue testing platforms
Tension control for rehab or therapeutic equipment
Its quiet, intelligent design is ideal for near-user environments and fitness-focused products, while the rugged internals meet industrial reliability standards.
Replaces heavy mechanical counterweights
Lightweight yet powerful, with servo-adjustable resistance
Accurate feedback via ABZ encoder for automated motion control
Easy integration with smart cycling and rehabilitation platforms
Supports multiple control modes for diverse usage scenarios
Built for frequent on/off use in duty-cycle environments
IP42 and thermal Class F safety design ensure long service life
Whether used in dynamic fitness setups or intelligent test equipment, this motor delivers consistent, customizable force without sacrificing space or stability.
Tigers delivers motion systems designed for performance, reliability, and smart control. Our servo gear motor supports evolving industry needs—from smart fitness gear to industrial automation—with the flexibility, precision, and support B2B clients demand.
We provide detailed technical specs, integration support, and scalable production options tailored to your project goals.
Contact Tigers today to request a quote, datasheet, or technical consultation. Our team is ready to help you select, integrate, or customize a servo gear motor that fits your system perfectly.
Model: L98-150-001
The 90kg Power Station Servo Gear Motor is a high-performance, space-saving solution designed to replace traditional counterweights with intelligent servo-driven motion. With its compact 5.5kg body and 90kg peak resistance, this motor delivers precision tension control in industrial simulators, smart fitness systems, and power training platforms.
Powered by 900W, the motor supports adjustable tension from 10–80Kgf, making it ideal for applications that require programmable load variability. Its built-in ABZ encoder ensures real-time feedback, while the integrated gear system boosts torque efficiency.
This servo gear motor is suitable for environments requiring clean design, intelligent response, and long-term durability—particularly in systems where conventional weight stacks are no longer viable.
Adjustable tension force (10–80Kgf) for dynamic load response
ABZ encoder provides precise speed and position control
Rated Power: 900W | Rated Speed: 2000rpm | Peak Speed: 4000rpm
Rated Resistance: 45kg | Peak Resistance: 90kg
3-phase, 220V AC | S3 intermittent duty | CW/CCW rotation
Compact and lightweight (5.5±0.1kg), easy to install and transport
Low noise operation ≤65dB at 1 meter
IP42-rated housing for protection in light-duty environments
Class F insulation & ≥50MΩ insulation resistance for electrical safety
This motor offers seamless performance where precision load management is required under variable conditions.
Programmable rowing machine resistance units
Smart indoor cycling platforms with real-time tension control
Power station training rigs and simulators
Compact robotic lifting or uncoiling systems
Industrial load simulation and fatigue testing platforms
Tension control for rehab or therapeutic equipment
Its quiet, intelligent design is ideal for near-user environments and fitness-focused products, while the rugged internals meet industrial reliability standards.
Replaces heavy mechanical counterweights
Lightweight yet powerful, with servo-adjustable resistance
Accurate feedback via ABZ encoder for automated motion control
Easy integration with smart cycling and rehabilitation platforms
Supports multiple control modes for diverse usage scenarios
Built for frequent on/off use in duty-cycle environments
IP42 and thermal Class F safety design ensure long service life
Whether used in dynamic fitness setups or intelligent test equipment, this motor delivers consistent, customizable force without sacrificing space or stability.
Tigers delivers motion systems designed for performance, reliability, and smart control. Our servo gear motor supports evolving industry needs—from smart fitness gear to industrial automation—with the flexibility, precision, and support B2B clients demand.
We provide detailed technical specs, integration support, and scalable production options tailored to your project goals.
Contact Tigers today to request a quote, datasheet, or technical consultation. Our team is ready to help you select, integrate, or customize a servo gear motor that fits your system perfectly.
Working hours | Continuous |
Heat resistance | Class F |
Body color | Black |
Cooling method | Natural cooling |
Vibration level | V15 |
Connection method | Direct connection |
Installation method | Flange installation |
Excitation method | Permanent magnet |
Protection method | Fully enclosed ,self-cooling IP42 (except shaft penetration) |
Rotation method | Counterclockwise rotation(CCW) as seen from the extension end of the motor shaft |
Working hours | Continuous |
Heat resistance | Class F |
Body color | Black |
Cooling method | Natural cooling |
Vibration level | V15 |
Connection method | Direct connection |
Installation method | Flange installation |
Excitation method | Permanent magnet |
Protection method | Fully enclosed ,self-cooling IP42 (except shaft penetration) |
Rotation method | Counterclockwise rotation(CCW) as seen from the extension end of the motor shaft |
