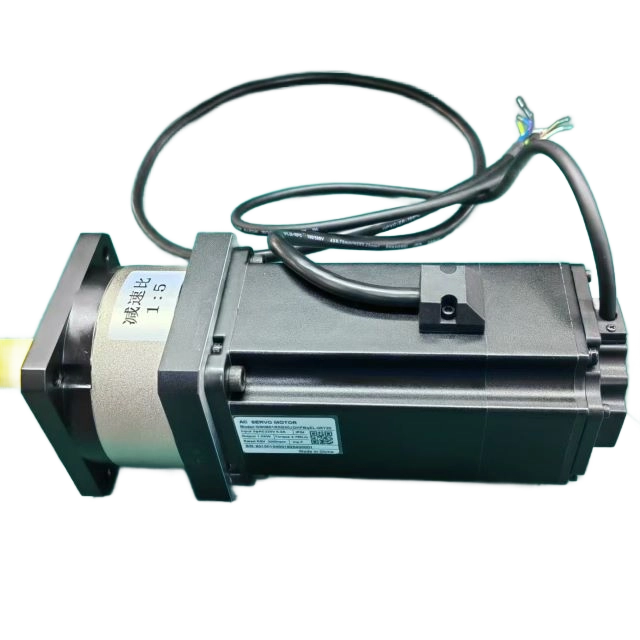

80mm 1.5kw Servo Motor for Robot Joints with Integrated Planetary Gearbox
80mm 1.5kw Servo Motor for Robot Joints with Integrated Planetary Gearbox 80mm 1.5kw Servo Motor for Robot Joints with Integrated Planetary Gearbox
80mm 1.5kw Servo Motor for Robot Joints with Integrated Planetary Gearbox 80mm 1.5kw Servo Motor for Robot Joints with Integrated Planetary Gearbox
80mm 1.5kw Servo Motor for Robot Joints with Integrated Planetary Gearbox 80mm 1.5kw Servo Motor for Robot Joints with Integrated Planetary Gearbox
80mm 1.5kw Servo Motor for Robot Joints with Integrated Planetary Gearbox 80mm 1.5kw Servo Motor for Robot Joints with Integrated Planetary Gearbox
80mm 1.5kw Servo Motor for Robot Joints with Integrated Planetary Gearbox 80mm 1.5kw Servo Motor for Robot Joints with Integrated Planetary Gearbox
80mm 1.5kw Servo Motor for Robot Joints with Integrated Planetary Gearbox 80mm 1.5kw Servo Motor for Robot Joints with Integrated Planetary Gearbox

loading

80mm 1.5kw Servo Motor for Robot Joints with Integrated Planetary Gearbox

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Servo motor planetary gear reducers have become the core drive solution in automation, robotics and other fields by combining high-precision power input with efficient torque amplification. When selecting a servo motor, it is necessary to comprehensively consider performance parameters and application scenarios, and pay attention to daily maintenance to extend its service life.

  • GM0801R5G30JDHFBqEL05Y20-2775

  • Tiger

  • 850151

Availability:
Quantity:
Inquire Add to Basket


Technical indicators

Rated output power1500W
Number of poles10P
rated voltage220VAC
Rated speed3000r/min
Maximum speed3600r/min
Rated torque4.78N.m
Instantaneous maximum torque14.4N.m
Rated Current6.3A(rms)
Instantaneous maximum current19.5A(rms)
Line back EMF48.2V/krpm
Torque coefficient0.797N.m/A
Moment of inertia2.67Kg.Sq.m.10-4
Line resistance1.12ohm
Line inductance5.6mH
Brake rated voltage24VDC
Brake rated power8.5W
Brake static torque>3.2N.m
Brake moment of inertia0.1945Kg.Sq.m.10-4
Weight5.43Kg
Feedback elementOptional
Temperature sensorNC


Geared motor parameters

Transmission ratio5ratio
Rated output torque23.9N.m
maximum output torque72N.m
Backlash≤5Arcmin
Average service life20000h
Full load transmission efficiency≥97
Temperature range-20~+80℃
Noise level≤60dB
Lubricating oilFully synthetic grease
Functional features
Working hoursContinuous
Heat resistanceClass F
Body colorBlack
Cooling methodNatural cooling
Vibration levelV15
Connection methodDirect connection
Installation methodFlange installation
Excitation methodPermanent magnet
Protection methodFully enclosed ,self-cooling IP54orIP65 (except shaft penetration)
Rotation methodCounterclockwise rotation(CCW) as seen from the extension end of the motor shaft


Previous:
Next:
Servo motor with Integrated Planetary Gearbox Geared Motor flange size 80mm rated power 1.5kw high torque servo motor industrial servo motor
