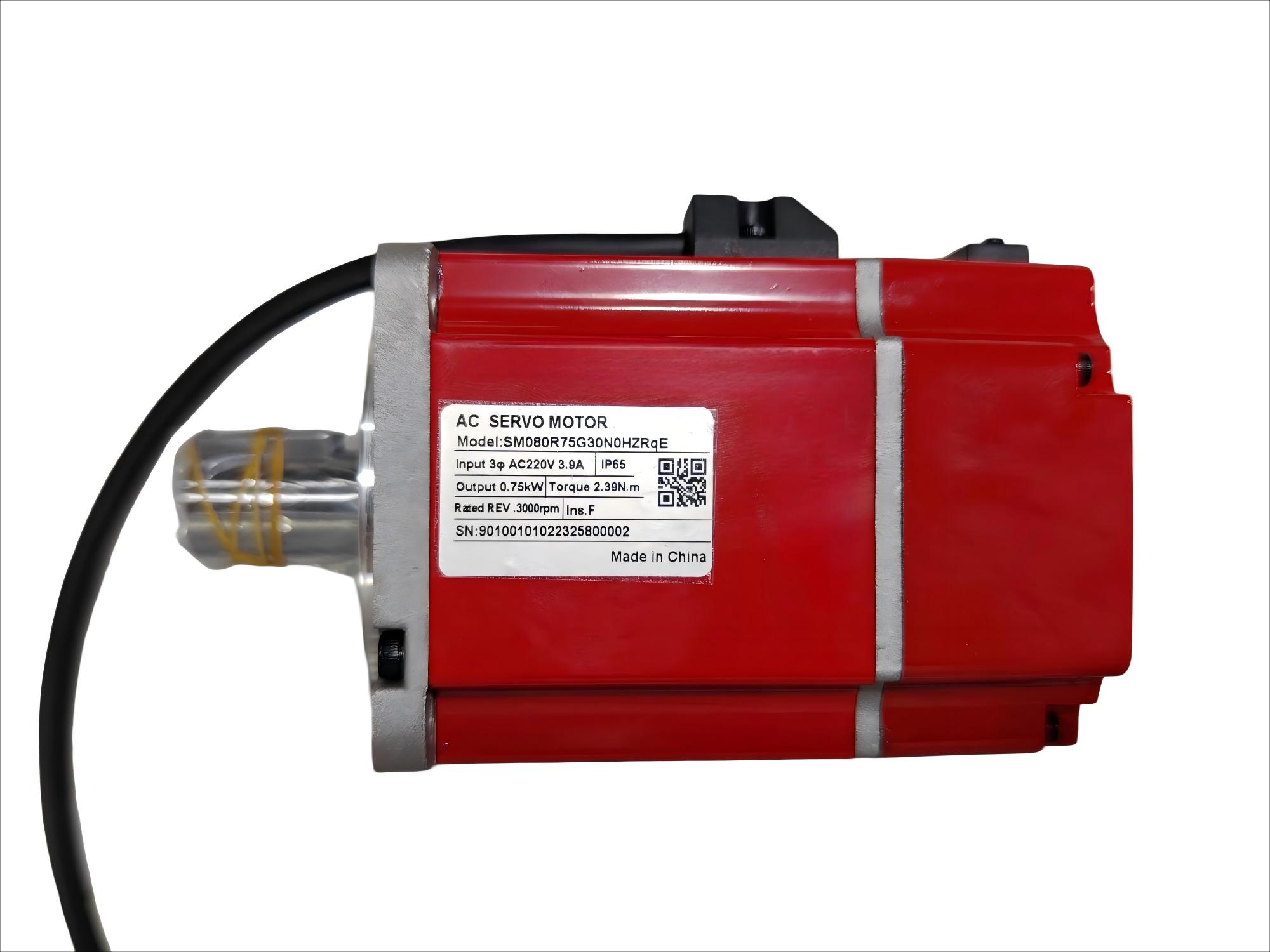

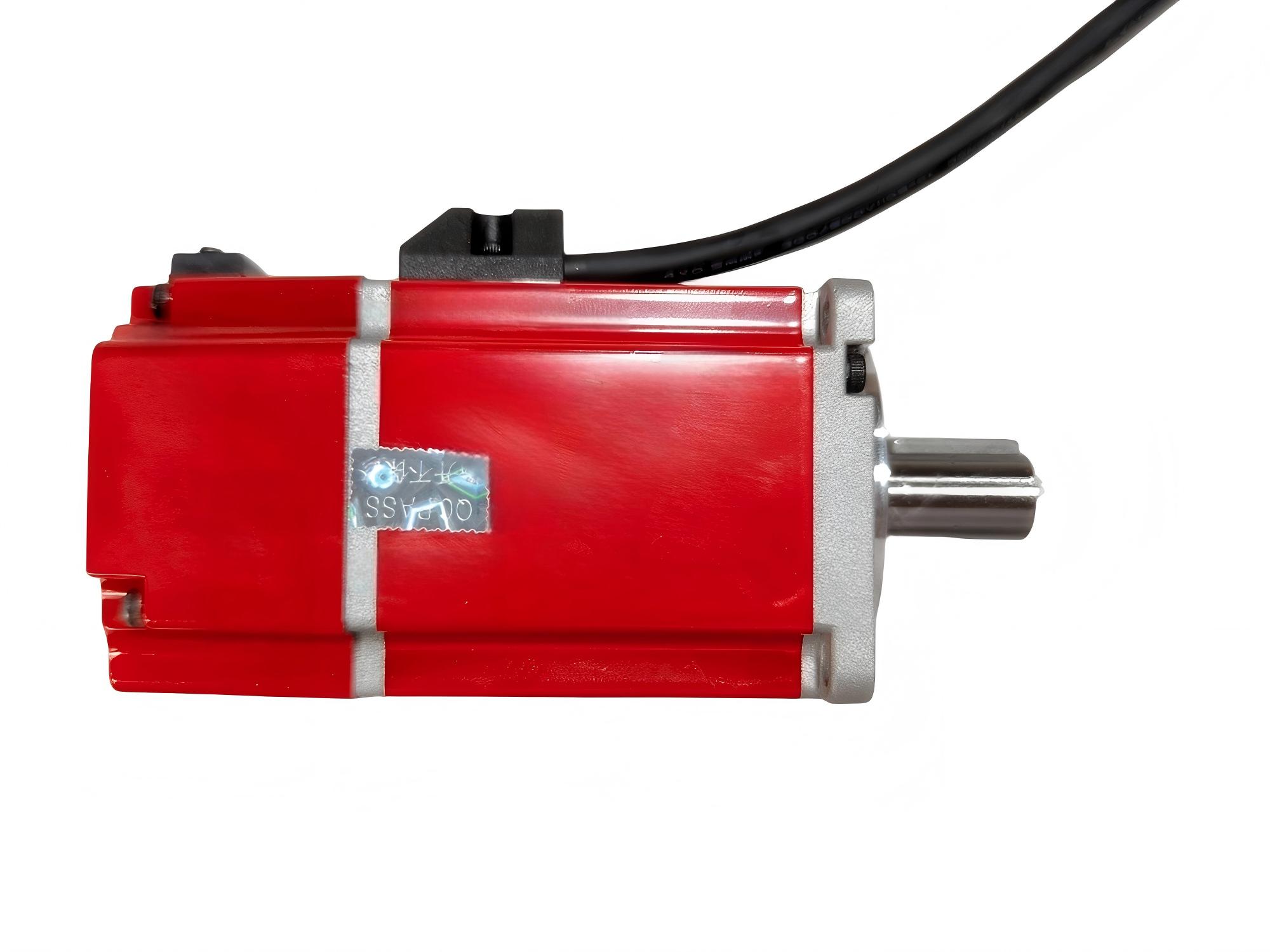

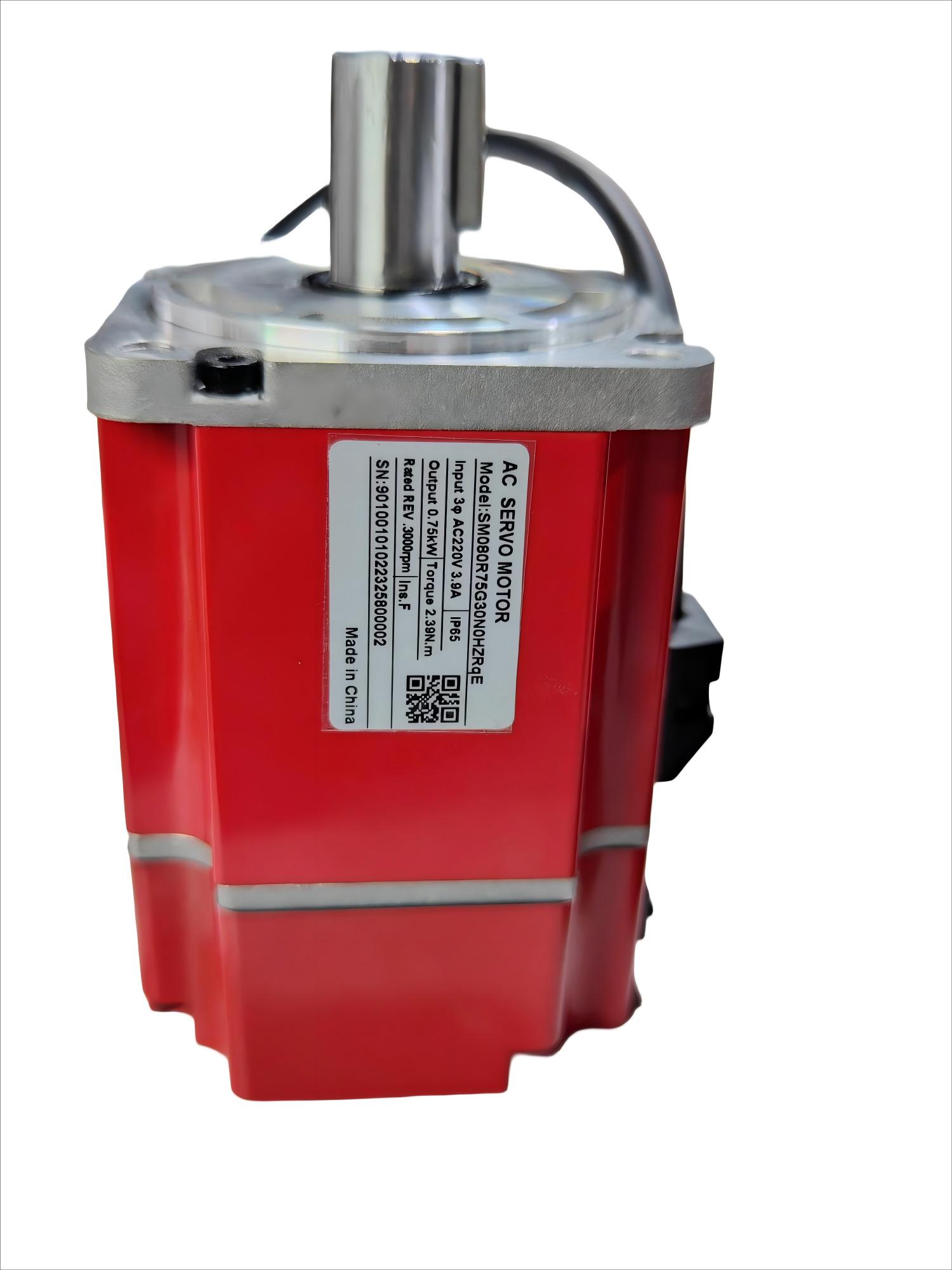

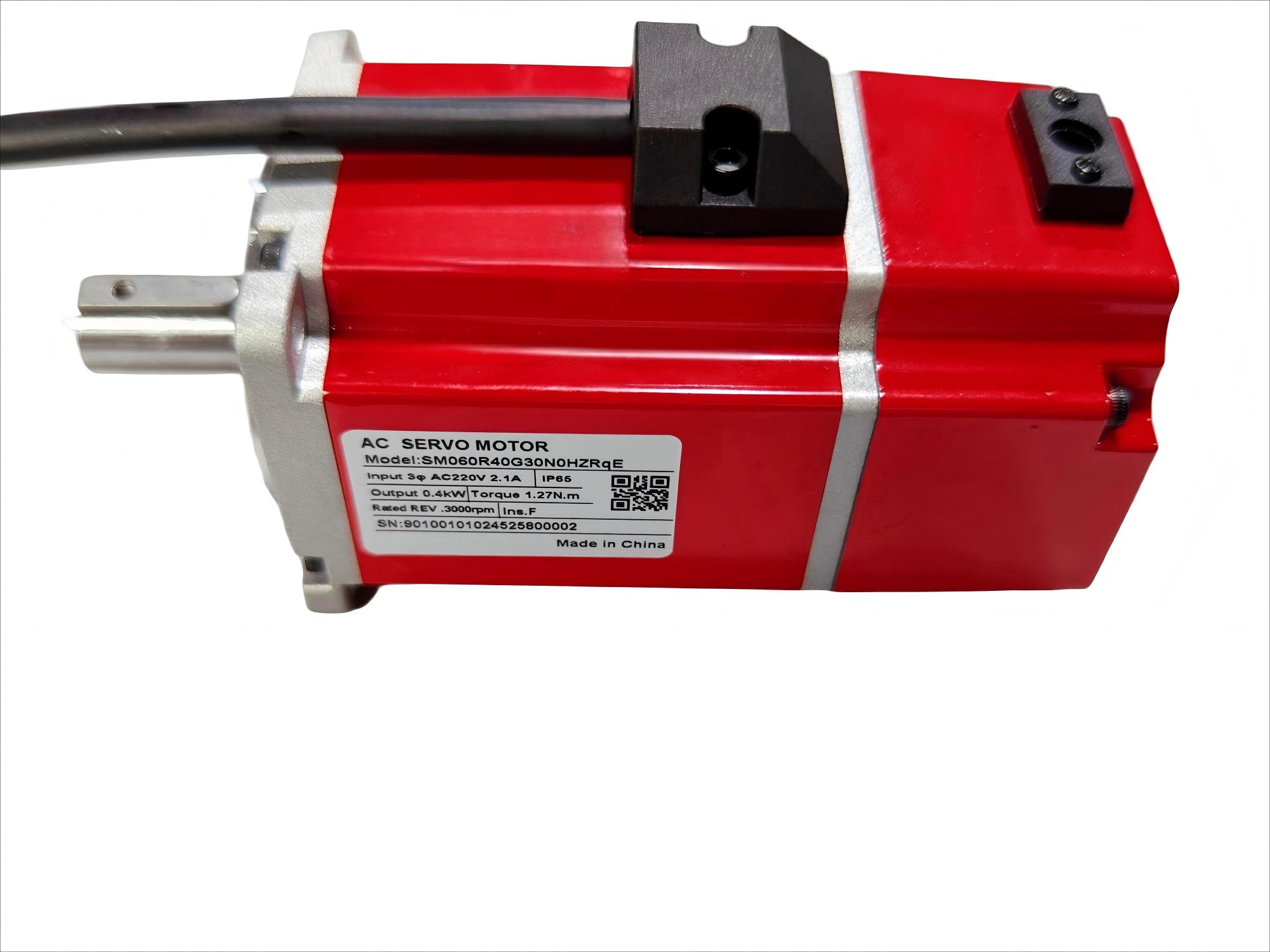

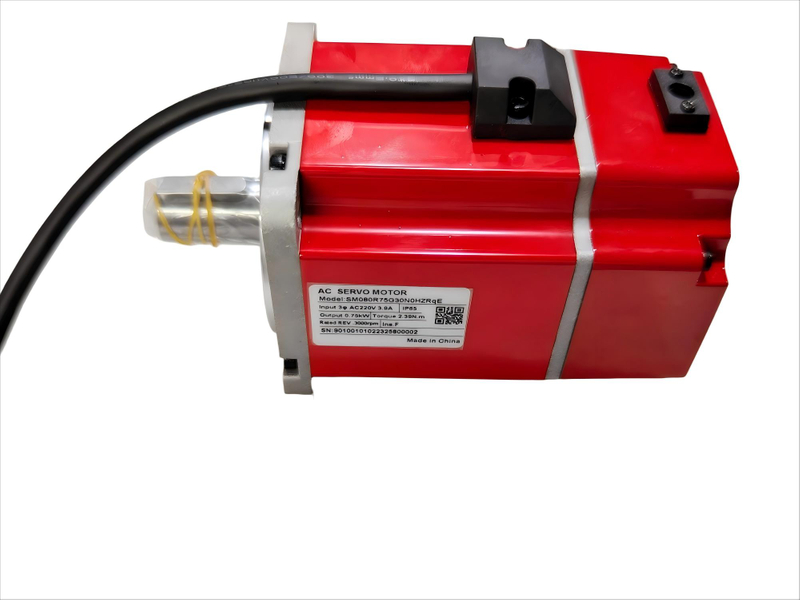

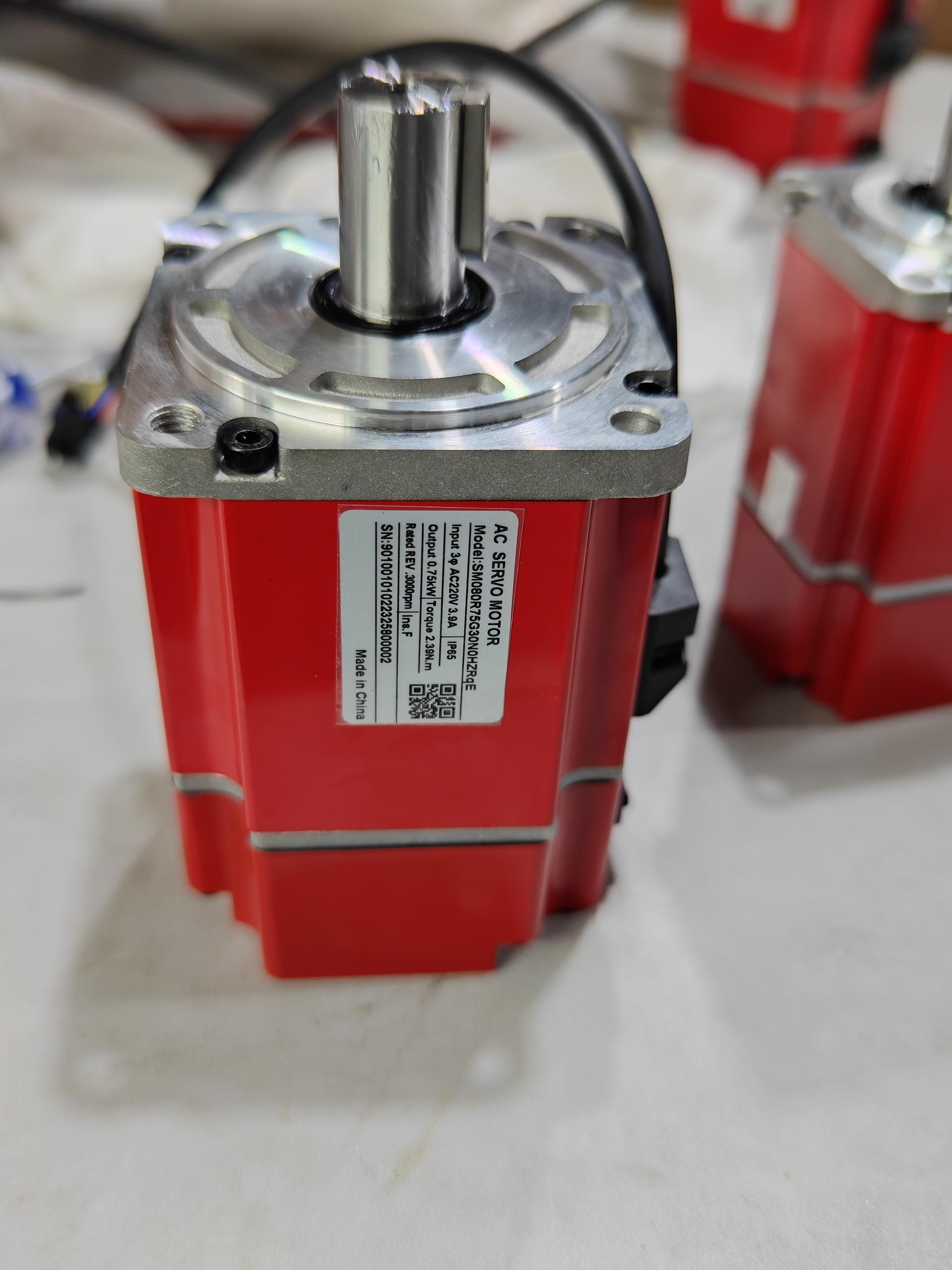

Red Shell Servo Motor
Red Shell Servo Motor Red Shell Servo Motor
Red Shell Servo Motor Red Shell Servo Motor
Red Shell Servo Motor Red Shell Servo Motor
Red Shell Servo Motor Red Shell Servo Motor
Red Shell Servo Motor Red Shell Servo Motor
Red Shell Servo Motor Red Shell Servo Motor

loading

Red Shell Servo Motor

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The motor's natural cooling design and IP65 protection rating (except at the shaft extension) enable it to withstand dust and moisture interference in general industrial environments. Additionally, its Class F thermal resistance rating ensures stability during continuous operation—these features further expand its applicability in the aforementioned scenarios.

  • SM060R40G30N0HZRqE

  • Tiger

  • 8501510090

Availability:
Quantity:
Inquire Add to Basket

Technical indicators

Rated output power 400 W
Number of poles 10 P
rated voltage 220 VAC
Rated speed 3000 r/min
Maximum speed 5000 r/min
Rated torque 1.27 N.m
Instantaneous maximum torque 4.46 N.m
Rated Current 2.1 A(rms)
Instantaneous maximum current 7.5 A(rms)
Line back EMF 38.4 V/krpm
Torque coefficient 0.635 N.m/A
Moment of inertia 0.587 Kg.㎡.10-4
Line resistance 6.1 Ω
Line inductance 13.8 mH
Weight 1.2 Kg
Feedback element Optional
Temperature sensor NC
Functional features
Working hours Continuous
Heat resistance Class F
Body color Black
Cooling method Natural cooling
Vibration level V15
Connection method Direct connection
Installation method Flange installation
Excitation method Permanent magnet
Protection method Fully enclosed ,self-cooling IP65 (except shaft penetration)
Rotation method Counterclockwise rotation(CCW) as seen from the extension end of the motor shaft


Working hours Continuous
Heat resistance Class F
Body color Black
Cooling method Natural cooling
Vibration level V15
Connection method Direct connection
Installation method Flange installation
Excitation method Permanent magnet
Protection method Fully enclosed ,self-cooling IP54 (except shaft penetration)
Rotation method Counterclockwise rotation(CCW) as seen from the extension end of the motor shaft


Previous:
Next:
flange size 60mm 400w red shell natural cooling
