Servo Motor Sizing Guide For Automation Equipment

Choosing the wrong servo motor sizing can halt your automation line. How do you ensure the perfect fit? Accurate servo motor sizing is crucial for smooth, efficient automation.

Many struggle with balancing torque, speed, and load demands. This article tackles these challenges head-on.

In this post, you’ll learn key sizing steps, common pitfalls, and how to optimize motor selection for top performance.

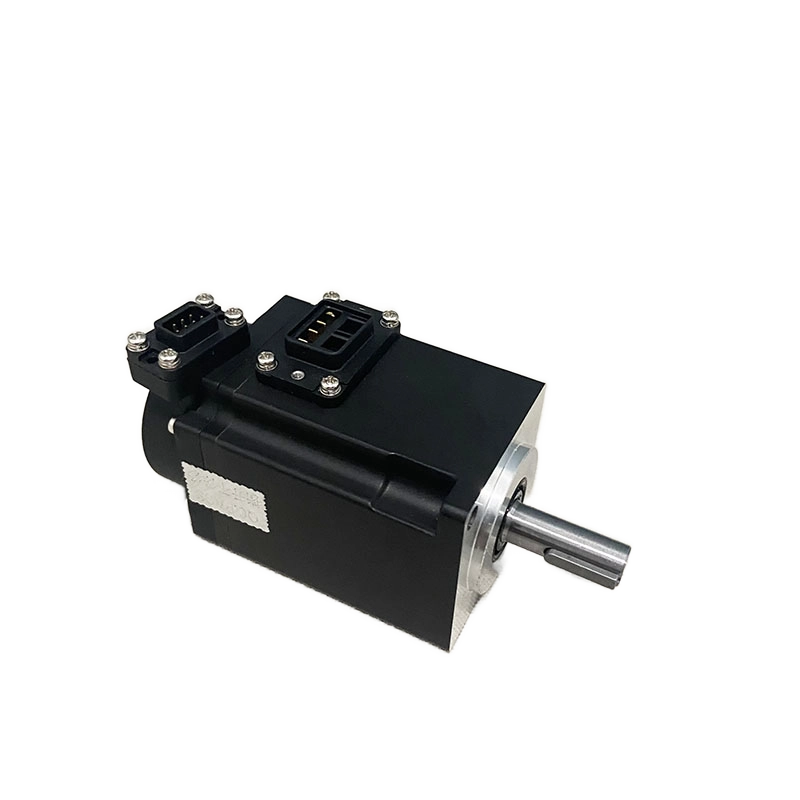

Comprehensive Servo Motor Sizing Guide for Automation Equipment

Defining the Motion Profile: Key Parameters and Their Role

The first step in servo motor sizing is defining the motion profile. This profile outlines how the automation equipment moves—its position, velocity, and acceleration over time. For example, a pick-and-place robot arm must move from one position to another within a specific time frame. Key parameters include:

• Travel distance: How far the load moves (degrees or millimeters).

• Move time: Total time allowed for the move.

• Dwell time: Pause between moves.

• Cycle time: Total repeating period.

Knowing these enables calculation of peak velocity and acceleration. Most systems use trapezoidal or S-curve profiles to balance speed and smoothness. These parameters directly impact the torque and speed requirements the servo motor must meet.

Calculating Load Inertia: Methods and Practical Examples

Load inertia represents the resistance of the mechanical load to changes in motion. It’s crucial because the servo motor must overcome this inertia to accelerate and decelerate the load effectively. Calculate load inertia by summing the reflected inertias of all mechanical components, including:

• Load itself (e.g., a rotating disk or linear mass).

• Couplings.

• Gearboxes.

• Ballscrews or belts.

For example, a 50 kg load on a ballscrew with a 10 mm lead reflects less inertia than the same load on a 50 mm lead ballscrew, due to the square of the lead length in the calculation. Gearboxes reduce reflected inertia by the square of their gear ratio, which can improve servo sizing outcomes.

Determining Required Torque: Acceleration, Friction, and Gravity Components

Total required torque combines several elements:

• Acceleration torque: Needed to speed up or slow down the load and motor rotor inertia.

• Friction torque: Continuous torque to overcome mechanical friction in bearings and seals.

• Gravity torque: Applies to vertical or inclined axes, necessary to hold or move the load against gravity.

The formula for acceleration torque is:

Taccel​=Jtotal​×α

where Jtotal​ is the sum of motor and load inertia, and α is angular acceleration. Add friction and gravity torque to this for total torque during acceleration. During constant velocity, only friction and gravity are relevant.

Computing RMS Torque for Thermal Load Considerations

Peak torque shows the maximum instantaneous torque, but it doesn’t reflect thermal limits. RMS (root mean square) torque accounts for heating over the entire motion cycle:

Trms​=tcycle​T12​t1​+T22​t2​+⋯​​

Here, Ti​ and ti​ are torque and duration for each phase. The servo motor’s continuous torque rating must exceed this RMS torque to avoid overheating during normal operation.

Evaluating the Inertia Ratio and Its Effect on Control Performance

The inertia ratio is the reflected load inertia divided by the motor’s rotor inertia. It significantly affects servo control:

• 1:1 to 3:1: Ideal for fast, precise applications.

• 3:1 to 10:1: Acceptable for most industrial uses.

• Above 10:1: Challenging to tune, may cause instability.

If the ratio is high, consider adding a gearbox, selecting a motor with higher rotor inertia, or redesigning the mechanical system to reduce load inertia.

Selecting the Appropriate Motor and Drive Based on Calculations

With torque, speed, and inertia ratio defined, use servo motor sizing software or a servo motor sizing calculator to choose the right motor and drive. Key specs to verify:

• Continuous torque ≥ RMS torque.

• Peak torque ≥ max instantaneous torque.

• Rated speed ≥ required speed.

• Rotor inertia fits the desired inertia ratio.

• Frame size matches mechanical constraints.

• Feedback and brake options suit the application.

Ensure the servo drive can supply the required current and supports your control protocol (EtherCAT, PROFINET, etc.).

Incorporating Safety Margins Without Oversizing

It’s important to add a safety margin, typically 20–30% above the calculated RMS torque, to cover variations like friction changes or load shifts. However, avoid oversizing, which leads to wasted cost, space, and poorer control due to inertia mismatch.

Key Factors Influencing Servo Motor Sizing

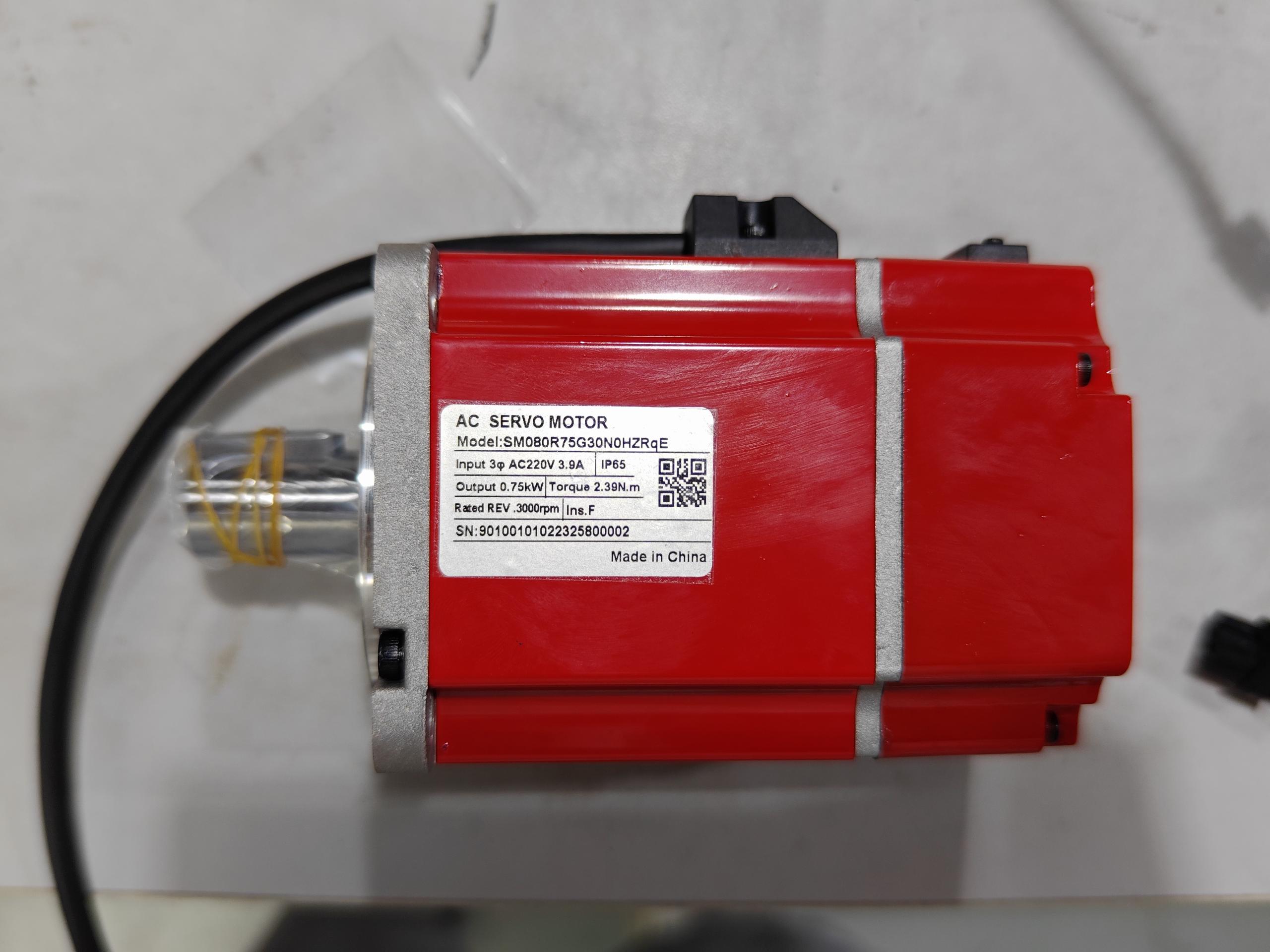

Torque Requirements: Continuous vs Peak Torque

When sizing a servo motor, understanding the difference between continuous and peak torque is essential. Continuous torque is the amount of torque the motor can deliver indefinitely without overheating. It determines the motor’s thermal limits during regular operation. Peak torque, however, is the maximum torque the motor can provide for short bursts, typically during acceleration or sudden load changes.

For example, a servo motor might have a continuous torque rating of 5 Nm but a peak torque of 15 Nm for brief periods. Using the peak torque as your sizing baseline can lead to undersizing and overheating. Always size the motor to meet or exceed the RMS torque calculated from your motion profile, ensuring the continuous torque rating covers the average load.

Speed Requirements and Their Effect on Motor Selection

Speed plays a crucial role in servo motor sizing. The required motor speed affects torque availability since torque generally decreases as speed increases. Motors designed for high-speed applications tend to have lower continuous torque ratings. Conversely, motors optimized for high torque usually operate at lower maximum speeds.

When selecting a motor, verify that the rated speed exceeds the maximum required speed of your application. For instance, if your automation equipment demands a maximum speed of 3000 RPM, choose a servo motor rated for at least that speed. Using a servo motor sizing calculator or servo motor selection software helps balance torque and speed requirements efficiently.

Load Inertia and Reflected Inertia in Mechanical Systems

Load inertia is the resistance of the mechanical load to changes in motion. Reflected inertia is the equivalent inertia seen by the motor shaft, including the load and mechanical components like gearboxes or couplings. A higher reflected inertia means the motor must deliver more torque to accelerate or decelerate the load.

A critical parameter is the inertia ratio—the reflected load inertia divided by the motor’s rotor inertia. Ideally, this ratio should be between 1:1 and 3:1 for precise control. Ratios above 10:1 can cause control instability and poor tuning. Using gearboxes or selecting a motor with higher rotor inertia can help optimize this ratio.

Impact of Gearboxes and Transmission Components on Sizing

Gearboxes and transmission components significantly influence servo motor sizing. They transform torque and speed, affecting reflected inertia and load characteristics. For example:

• Gear Reduction: A gearbox with a 5:1 ratio reduces reflected load inertia by 25:1 (the square of the gear ratio), making it easier for the motor to control the load.

• Torque Multiplication: Gearboxes increase torque at the output shaft, allowing the use of smaller motors for high-torque applications.

• Speed Reduction: They lower output speed, which can help motors operate within optimal speed ranges.

However, gearboxes introduce backlash, friction, and compliance, which may affect control performance. When using gearboxes, adjust your servo motor sizing calculations accordingly and consider these factors in your servo motor sizing software or servo motor calculator.

Common Mistakes in Servo Motor Sizing and How to Avoid Them

Ignoring Friction and Gravity Loads

One of the most common errors in servo motor sizing is neglecting friction and gravity loads. Many engineers focus solely on acceleration torque, overlooking the continuous torque needed to overcome friction in bearings, seals, and guides. For vertical or inclined axes, gravity torque plays a crucial role, as the motor must hold or move the load against gravity. Ignoring these factors results in undersized motors that stall or fault during operation.

Confusing Peak Torque with Continuous Torque

Another frequent mistake is sizing based on peak torque instead of continuous torque. Peak torque is the motor’s short-term maximum, used only during acceleration or sudden load changes. Continuous torque is the sustainable torque without overheating. For example, a servo motor rated for 10 Nm continuous and 30 Nm peak torque cannot run continuously at 25 Nm, even though it’s below peak. Misusing peak torque leads to overheating and premature motor failure.

Neglecting Cable Losses and Electrical Considerations

Cable length and quality affect the voltage and current reaching the motor. Long cables introduce resistance, causing voltage drops and reducing effective torque. For cable runs over 20 meters, it’s essential to calculate losses and consider upsizing cables or drives. Ignoring electrical factors can degrade performance and cause unexpected faults, especially in high-power servo motor big installations.

Overlooking Duty Cycle and Production Load Profiles

Sizing a servo motor based on testing or commissioning conditions alone is risky. Machines often run faster or more frequently in production than during initial tests. This changes the thermal load and RMS torque requirements. Overlooking the true duty cycle leads to undersizing and overheating. Always account for realistic production profiles when using a servo motor sizing calculator or servo motor sizing software.

Oversizing and Its Negative Effects on Performance and Cost

While undersizing causes faults, oversizing has its own downsides. A servo motor that is much larger than needed wastes capital and space. It may draw more power than necessary and create a poor inertia ratio. This inertia mismatch reduces control bandwidth and precision. Oversizing can make tuning harder and increase wear on mechanical components. Proper servo sizing balances safety margins without excessive oversizing.

Practical Recommendations for Effective Servo Motor Sizing

Starting with Mechanical Design and Motion Requirements

Begin your servo motor sizing by thoroughly understanding the mechanical design and motion requirements of your automation equipment. Define the motion profile precisely: know the travel distances, move times, and cycle rates. This foundation ensures that all sizing calculations reflect real-world conditions rather than assumptions. For example, a linear actuator moving a heavy load over a short distance at high speed demands different motor characteristics than a rotary table with slower, continuous motion.

By focusing on mechanical design first, you avoid the common pitfall of selecting a motor based on availability instead of suitability. This approach leads to better matching of torque, speed, and inertia requirements, which improves performance and reliability.

Using Manufacturer Sizing Tools and Software

Leverage servo motor sizing software and servo motor selection tools provided by manufacturers. Brands like Allen-Bradley, Siemens, and Yaskawa offer intuitive servo motor sizing calculators that automate complex calculations. These tools help translate your motion profile and load data into recommended motor and drive combinations.

While these tools are extremely helpful, always validate their outputs by reviewing the input parameters carefully. Cross-checking with manual calculations for load inertia and torque ensures the selected servo motor size aligns with your system’s needs. Using these software solutions speeds up the design process and reduces human error.

Building Appropriate Margins for Real-World Conditions

Incorporate safety margins of about 20–30% above your calculated RMS torque to account for uncertainties like friction changes, wear, and slight load variations. This margin protects against unexpected operating conditions without leading to oversizing.

Avoid excessive margins, which inflate costs and may degrade control performance due to inertia mismatch. Properly sized margins balance reliability and efficiency, ensuring the servo motor delivers consistent performance throughout the equipment’s lifecycle.

Prototyping and Validating Motor Selection on Actual Equipment

After selecting a servo motor using sizing tools and calculations, prototype the motor on the actual machine. Measure motor current, temperature rise, and motion response during typical operation. This real-world testing validates assumptions made during sizing and reveals hidden factors like additional friction or cable losses.

Prototyping helps catch issues early, allowing adjustments before full production. It also confirms that the servo motor sizing calculator’s recommendations translate into reliable, efficient operation under real conditions.

Overview of Servo Motor Sizes and Their Applications in Automation

Classification of Servo Motors by Size and Torque Range

Servo motors come in various sizes, each suited for different torque and speed demands in automation equipment. Generally, they are classified into:

• Micro Servo Motors: Torque below 0.1 Nm, speeds up to 5000 RPM. Ideal for small robots, drones, and hobbyist projects.

• Small Servo Motors: Torque between 0.1 and 1 Nm, speeds up to 6000 RPM. Common in medical devices, 3D printers, and light CNC machines.

• Medium Servo Motors: Torque from 1 to 10 Nm, speeds between 500 and 3000 RPM. Used in industrial robots, packaging machines, and mid-sized automation.

• Large Servo Motors: Torque above 10 Nm, speeds generally below 1500 RPM. Suitable for heavy machinery, conveyor systems, and large presses.

This classification helps engineers quickly narrow down motor options based on application torque and speed needs. When using a servo motor sizing calculator or servo motor sizing software, these categories guide initial motor selection before detailed calculations.

Typical Applications for Micro, Small, Medium, and Large Servo Motors

Each servo motor size serves distinct automation roles:

• Micro Servo Motors: Precise, low-torque tasks such as camera gimbals, small robotic arms, and miniature positioning systems.

• Small Servo Motors: Light industrial tasks like pick-and-place machines, small CNC axes, and medical instruments.

• Medium Servo Motors: Versatile use in assembly robots, packaging lines, and automated inspection equipment.

• Large Servo Motors: Heavy-duty applications including robotic welding, large conveyor drives, and machine tool axes.

Selecting the right size ensures the servo motor can meet the torque-speed profile without oversizing, which can increase cost and reduce control precision.

Understanding the Torque-Speed Trade-off in Motor Selection

Servo motors exhibit an inherent trade-off between torque and speed:

• At low speeds, motors can deliver higher continuous torque.

• At high speeds, torque capability decreases due to electrical and thermal limits.

For example, a medium servo motor might provide 10 Nm continuous torque at 500 RPM but only 4 Nm at 3000 RPM. This relationship is typically shown in a torque-speed curve, which is essential when using a servo motor size chart or servo motor calculator to confirm motor performance across the operating range.

When sizing, ensure the motor’s torque at the required speed meets or exceeds the calculated torque demand from your motion profile. Servo motor sizing software often includes torque-speed curves to automate this check.

NEMA Frame Sizes and Their Relevance in Automation Equipment

NEMA (National Electrical Manufacturers Association) frame sizes standardize servo motor dimensions, mounting patterns, and shaft sizes. Common NEMA servo motor frame sizes include:

Using a NEMA servo motor frame size chart helps designers select motors that fit mechanical constraints and standard mounting hardware. It also facilitates compatibility with servo motor drives and accessories.

When combined with torque and speed requirements, frame size ensures the servo motor physically integrates into your automation equipment without modification.

Selecting Servo Motors and Drives for Automation Equipment

Matching Motor Specifications to Calculated Load Requirements

After calculating the required torque, speed, and inertia ratio, the next step is selecting a servo motor that meets these demands. Use a servo motor sizing calculator or servo motor sizing software to narrow down options. Key motor specifications to verify include:

• Continuous torque: Must exceed the calculated RMS torque to prevent overheating.

• Peak torque: Should cover the maximum instantaneous torque during acceleration.

• Rated speed: Needs to be higher than the maximum required speed.

• Rotor inertia: Should fit the desired inertia ratio to ensure smooth control.

• Frame size: Must align with mechanical space and mounting constraints.

Cross-reference your selections with a servo motor size chart or servo motor frame size chart to confirm physical compatibility. For example, if your application requires a compact motor, consult a NEMA servo motor frame size chart to find a motor that fits standard mounting dimensions.

Choosing Appropriate Feedback Devices and Control Options

Feedback devices provide position and speed information critical for precise servo control. Common feedback types include:

• Incremental encoders: Provide relative position data; suitable for many standard applications.

• Absolute encoders: Offer exact position at power-up; ideal for safety-critical or complex systems.

• Resolvers: Rugged and reliable in harsh environments.

Select the feedback device based on accuracy, environmental conditions, and cost. Additionally, consider control options such as:

• Torque mode: For applications requiring direct torque control.

• Position mode: For precise positioning tasks.

• Velocity mode: For speed control applications.

Ensure that the servo drive supports the chosen feedback and control modes.

Compatibility of Servo Drives with Power and Communication Protocols

Servo drives must match the motor’s electrical requirements and integrate seamlessly with your automation control system. When selecting a drive, verify:

• Current and voltage ratings: The drive must supply sufficient current and voltage for the motor’s continuous and peak torque.

• Power supply compatibility: Confirm the drive’s bus voltage suits your facility’s power.

• Communication protocols: Drives often support EtherCAT, PROFINET, EtherNet/IP, or other industrial networks. Choose one compatible with your controller for smooth integration.

• Safety features: Some drives include integrated safety functions like safe torque off (STO).

Selecting compatible drives ensures reliable performance and simplifies system integration.

Considerations for Vertical Axis and Safety Brakes

Vertical axes require special attention due to gravity loads. To maintain position and safety:

• Select motors with adequate holding torque or use external brakes.

• Many servo motors offer integrated safety brakes designed to hold the load during power loss.

• Ensure the brake’s holding torque exceeds the gravity torque calculated during sizing.

• Confirm that the servo drive supports brake control functions if using integrated brakes.

Proper brake selection prevents load drift and enhances operator safety in vertical applications.

Conclusion

Mastering servo motor sizing is essential for optimal automation performance. Key steps include defining motion profiles, calculating load inertia, and selecting motors based on torque and speed needs. Proper sizing improves cost efficiency, reliability, and control precision. Advances in technology continue to refine sizing methods, enhancing system capabilities. Engaging expert engineering support ensures accurate motor selection and system integration. Tiger Motion Control Co., Ltd. offers advanced servo solutions that deliver reliable performance and value for diverse automation applications.

FAQ

Q: What is servo motor sizing and why is it important for automation equipment?

A: Servo motor sizing involves calculating the required torque, speed, and inertia to select a motor that matches the automation equipment’s motion profile. Proper servo motor sizing ensures efficient performance, prevents overheating, and avoids control instability. Using tools like a servo motor sizing calculator or servo motor sizing software helps achieve accurate selection.

Q: How do I use a servo motor sizing calculator effectively?

A: To use a servo motor sizing calculator, input key parameters such as load inertia, travel distance, move time, and torque requirements. The calculator considers factors like acceleration, friction, and gravity to recommend suitable motors. Always cross-check results with manual calculations and consult a servo motor size chart or servo motor frame size chart for confirmation.

Q: What role does load inertia play in servo motor sizing?

A: Load inertia represents the resistance of the mechanical load to changes in motion and directly affects the torque needed. Calculating reflected inertia—including gearboxes and couplings—is essential for accurate servo sizing. Maintaining an optimal inertia ratio using servo motor sizing software improves control precision.

Q: Why should I avoid oversizing my servo motor?

A: Oversizing a servo motor leads to higher costs, wasted space, and poor control due to inertia mismatch. Proper servo motor sizing balances safety margins without excessive oversizing, ensuring efficient operation and easier tuning.

Q: How do NEMA servo motor frame size charts assist in motor selection?

A: NEMA servo motor frame size charts standardize motor dimensions and mounting, helping engineers select motors that fit mechanical constraints. Combining frame size data with torque-speed requirements from a servo motor sizing calculator ensures both physical and performance compatibility.
