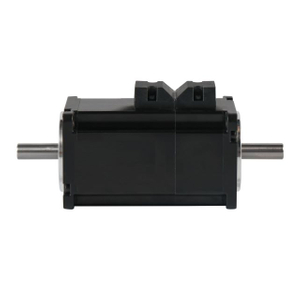

60# 36V 200W
60# 36V 200W 60# 36V 200W
60# 36V 200W 60# 36V 200W
60# 36V 200W 60# 36V 200W
60# 36V 200W 60# 36V 200W
60# 36V 200W 60# 36V 200W

loading

60# 36V 200W

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Quantity:
Inquire Add to Basket

Rated output power 200 W
Number of poles 10 P
rated voltage 36 VDC
Rated speed 3000 r/min
Maximum speed 3600 r/min
Rated torque 0.64 N.m
Instantaneous maximum torque 1.92 N.m
Rated Current 6.8 A(rms)
Instantaneous maximum current 20.5 A(rms)
Line back EMF 5.94 V/krpm
Torque coefficient 0.098 N.m/A
Moment of inertia 0.3 Kg.sq.m.10-4
Line resistance 0.406 ohm
Line inductance 0.67 mH
Brake rated voltage without brake VDC
Brake rated power without brake W
Brake static torque without brake N.m
Brake moment of inertia without brake Kg.sq.m.10-4
Weight 0.8 Kg
Feedback element Optional
Temperature sensor NC


Working hours

Continuous

Heat resistance

Class F

Body color

Black

Cooling method

Natural cooling

Vibration level

V15

Connection method

Direct connection

Installation method

Flange installation

Excitation method

Permanent magnet

Protection method

Fully enclosed ,self-cooling IP65 (except shaft penetration)

Rotation method

Counterclockwise rotation(CCW) as seen from the extension end of the motor shaft
